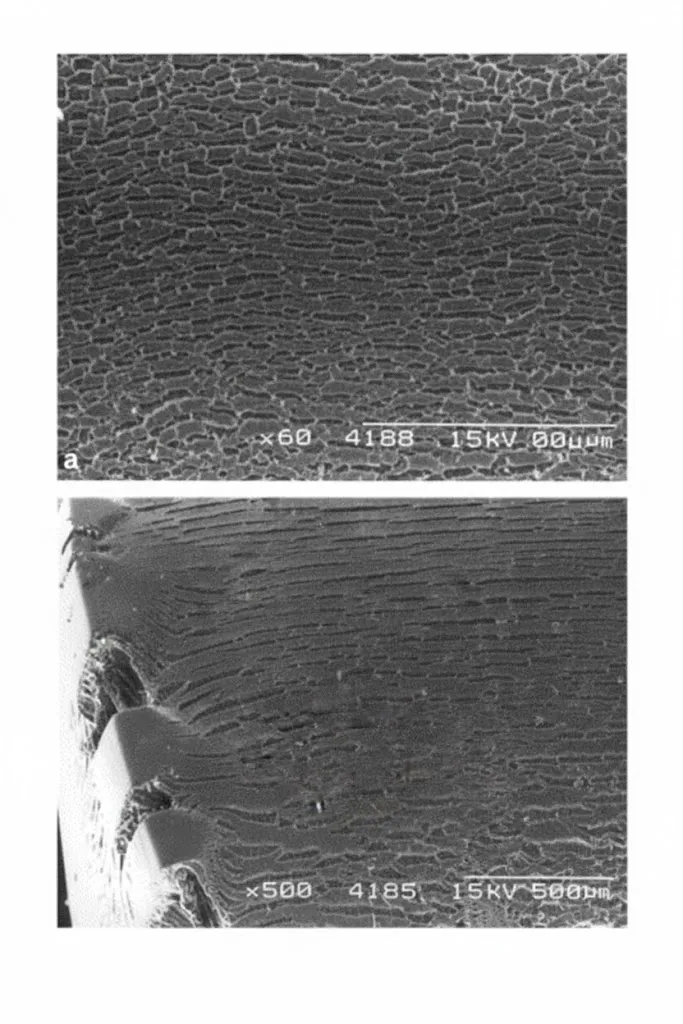

Accelerated Aging Testing for Polymers

Basics of Polymer Aging

Aging in polymers involves a multitude of chemical and physical changes. These can include chain scission, cross-linking, oxidation, and changes in crystallinity, which can affect tensile strength, elasticity, color, and other physical properties. External factors such as ultraviolet (UV) radiation, thermal fluctuations, mechanical stress, and chemical exposure are primarily responsible for these changes.

Accelerated Aging Testing: Rationale and Benefits

The rationale behind accelerated aging is to predict a polymer's lifespan and behavior under normal usage conditions. The benefits are manifold: it enhances product safety and reliability, informs warranty periods, and supports legal compliance. Accelerated aging can also drive innovation by allowing quick feedback during the development phase of new polymeric materials.

Methods of Accelerated Aging Testing

Various methods are used to accelerate the aging process:

• Thermal Aging: Conducted in ovens or environmental chambers, where polymers are subjected to elevated temperatures.
• Photodegradation Testing: Uses UV lamps to simulate the effects of sunlight.
• Oxidative Aging: Involves exposure to reactive oxygen species or ozone.
• Hydrolysis Aging: Here, polymers are exposed to moisture and heat to assess hydrolytic degradation.
• Mechanical Stress: Techniques like dynamic mechanical analysis (DMA) simulate the effects of cyclic stresses on polymer durability.

Let's take a look more in detail how these methods are implemented.

Thermal Aging

Standards:

• ASTM D3045 - "Standard Practice for Heat Aging of Plastics Without Load"
• ISO 2578 - "Plastics - Determination of Time-Temperature Limits After Prolonged Exposure to Heat"

Procedure: In thermal aging, polymers are placed in ovens set at elevated temperatures significantly higher than those the materials would encounter in their typical service environment. The time duration can range from a few days to several months, depending on the specific standard and the objectives of the test. The test conditions are chosen to accelerate the aging process without causing non-representative types of degradation. The changes in the material's properties, such as tensile strength, elongation, and impact resistance, are monitored to assess the aging effects.

Photodegradation Testing

Standards:

• ASTM G154 - "Standard Practice for Operating Fluorescent Ultraviolet (UV) Lamp Apparatus for Exposure of Nonmetallic Materials"
• ISO 4892-2 - "Plastics - Methods of Exposure to Laboratory Light Sources - Part 2: Xenon-arc Lamps"

Procedure: In photodegradation tests, polymer samples are exposed to UV light to simulate the effects of sunlight, particularly the ultraviolet portion that is known to accelerate degradation. The samples are placed in a chamber equipped with UV lamps, and often the test includes cycles of light and darkness to simulate day-night cycles, along with controlled temperature and humidity conditions. Materials are periodically removed from the test chamber and tested for changes in color, gloss, tensile properties, and any other relevant physical or chemical characteristics.

Oxidative Aging

Standards:

• ASTM D572 - "Standard Test Method for Rubber—Deterioration by Heat and Oxygen"
• ISO 11346 - "Rubber, vulcanized or thermoplastic — Estimation of life-time and maximum temperature of use"

Procedure: Oxidative aging tests involve exposing polymers to an environment rich in oxygen or ozone, often at elevated temperatures, to accelerate the oxidation process. This method is particularly relevant for materials like rubbers that are prone to oxidation. The polymers are placed in a chamber with controlled oxygen or ozone concentration, temperature, and sometimes UV light as well. The exposure period varies, and degradation is assessed through changes in properties such as cracking, hardening, or loss of elasticity.

Hydrolysis Aging

Standards:

• ASTM D570 - "Standard Test Method for Water Absorption of Plastics"
• ISO 4611 - "Plastics - Determination of the effects of exposure to damp heat, water spray and salt mist"

Procedure: Hydrolysis aging tests are essential for polymers that are susceptible to degradation in the presence of moisture, such as polyesters and polycarbonates. Samples are typically immersed in water or exposed to high humidity at elevated temperatures. The severity of the test conditions is often much higher than those encountered in service to accelerate the aging process. The assessment is conducted by measuring the physical and mechanical properties after exposure to identify any significant changes that would indicate degradation due to hydrolysis.

Mechanical Stress

Standards:

• ASTM D5279 - "Standard Test Method for Plastics: Dynamic Mechanical Properties: In Torsion"
• ISO 6721-1 - "Plastics — Determination of dynamic mechanical properties — Part 1: General principles"

Procedure: Mechanical stress testing, including dynamic mechanical analysis (DMA), subjects polymers to cyclic or static loads to replicate the stress they would experience over time. In a DMA test, a small deformation is applied to a polymer sample at a controlled temperature and frequency. The material's response in terms of storage modulus, loss modulus, and tan delta is measured. This information helps to understand the viscoelastic behavior of the polymer and predict its performance under mechanical stress over time.

Standardized Tests and Protocols

A plethora of standards governs accelerated aging tests, such as ASTM D3045 for thermal aging of plastics, or ASTM G154 for UV exposure of non-metallic materials. These standardized protocols ensure consistency and reliability in testing procedures and results interpretation.

Data Interpretation and Predictive Modeling

Data from accelerated aging tests can be complex. Predictive modeling, such as the use of the Arrhenius equation, helps estimate the polymer's long-term behavior by relating the rate of degradation to temperature. However, the extrapolation of accelerated aging data to real-world scenarios must be done cautiously, considering the limitations and ensuring statistical significance.

Case Studies

Recent case studies, such as the accelerated aging of biodegradable polymers for medical applications, demonstrate the practical utility of these tests. In such instances, accelerated aging data have been essential in predicting product performance and ensuring compliance with medical device regulations.

Innovations in Accelerated Aging Testing

The field of accelerated aging is rapidly advancing with innovations like the use of nanotechnology to enhance the sensitivity of tests and computational modeling to simulate and predict aging processes more accurately. These advancements offer the promise of more rapid and precise aging studies.

Conclusion

Accelerated aging testing for polymers is a critical field that combines rigorous scientific methodology with practical industry applications. It enables the prediction of material longevity and performance, informing product development and ensuring safety and sustainability.

References

[1]
